KWIKSET PASSAGE HANDLESETS

For hall and closet, all interior doors where a simple latch is all that is required. Both bell-shaped knobs always free; no locking mechanism. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: 2-3/8" standard and adjustable to 2-3/8" or 2-3/4" optional. DOOR THICKNESS: 1-3/8" to 1-3/4". CYLINDER: 5-pin. FACEPLATE: 1" x 2-1/4". STRIKE: 2-1/4" full lip. BOLT: 1/2" throw. HANDING: Reversible for right or left hand doors. ANSI/BHMA: Grade 3.

For hall and closet, all interior doors where a simple latch is all that is required. Both bell-shaped knobs always free; no locking mechanism. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: 2-3/8" standard and adjustable to 2-3/8" or 2-3/4" optional. DOOR THICKNESS: 1-3/8" to 1-3/4". CYLINDER: 5-pin. FACEPLATE: 1" x 2-1/4". STRIKE: 2-1/4" full lip. BOLT: 1/2" throw. HANDING: Reversible for right or left hand doors. ANSI/BHMA: Grade 3.

KWIKSET TYLO PASSAGE SATIN CHRM

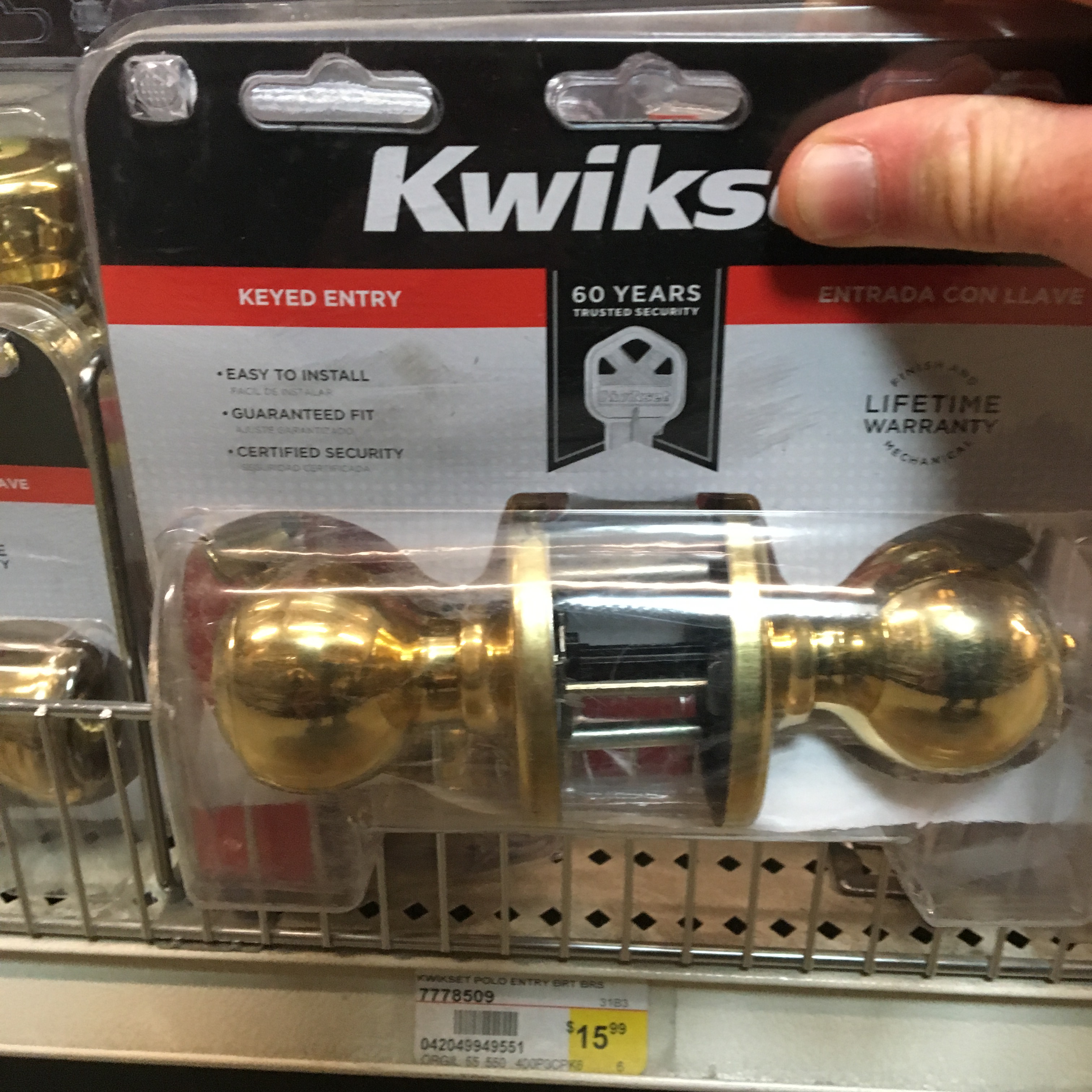

KWIKSET POLO ENTRY BRT BRS

KWIKSET POLO PASSAGE S.NICKEL

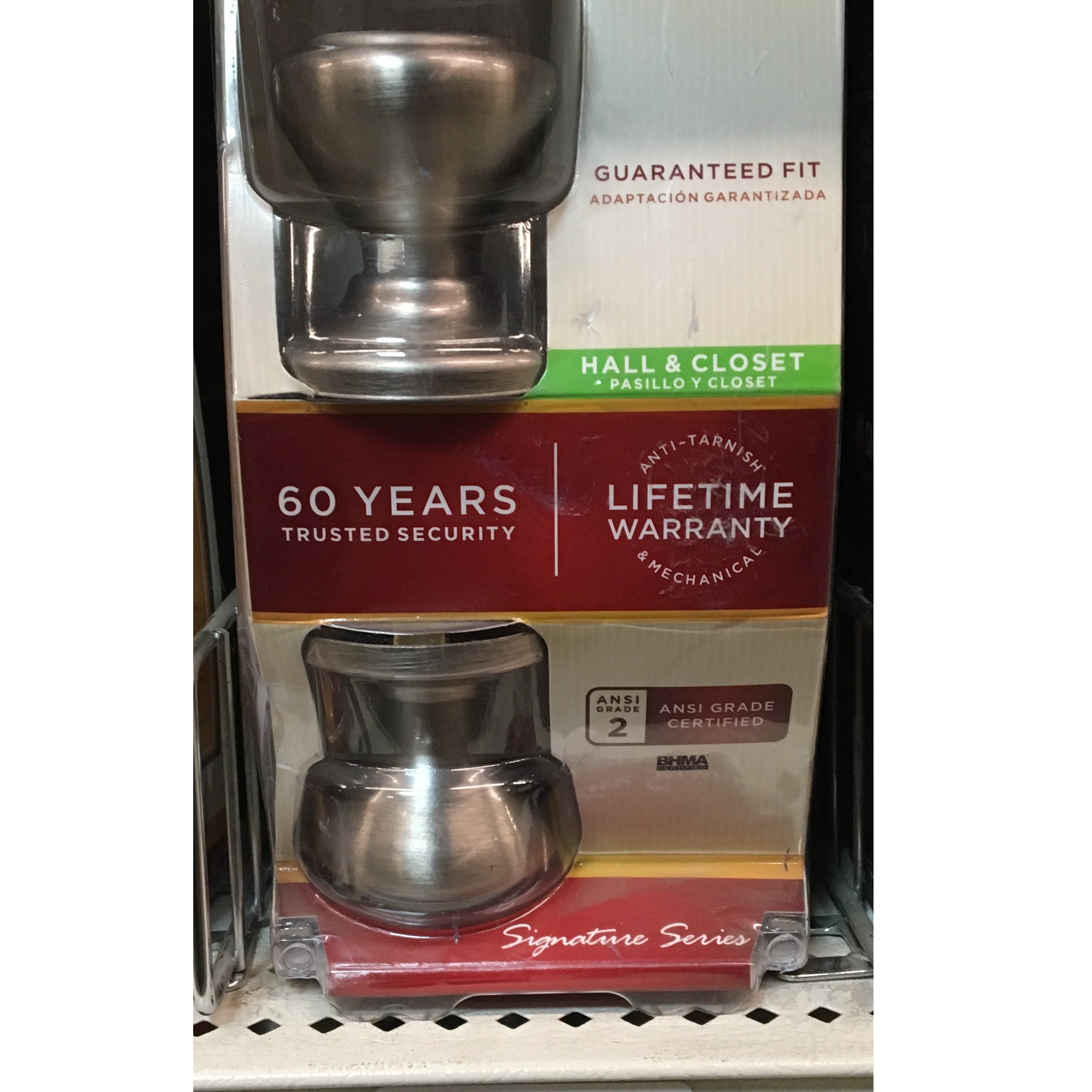

KWIKSET CAMERON PASSAGE S.NICKEL

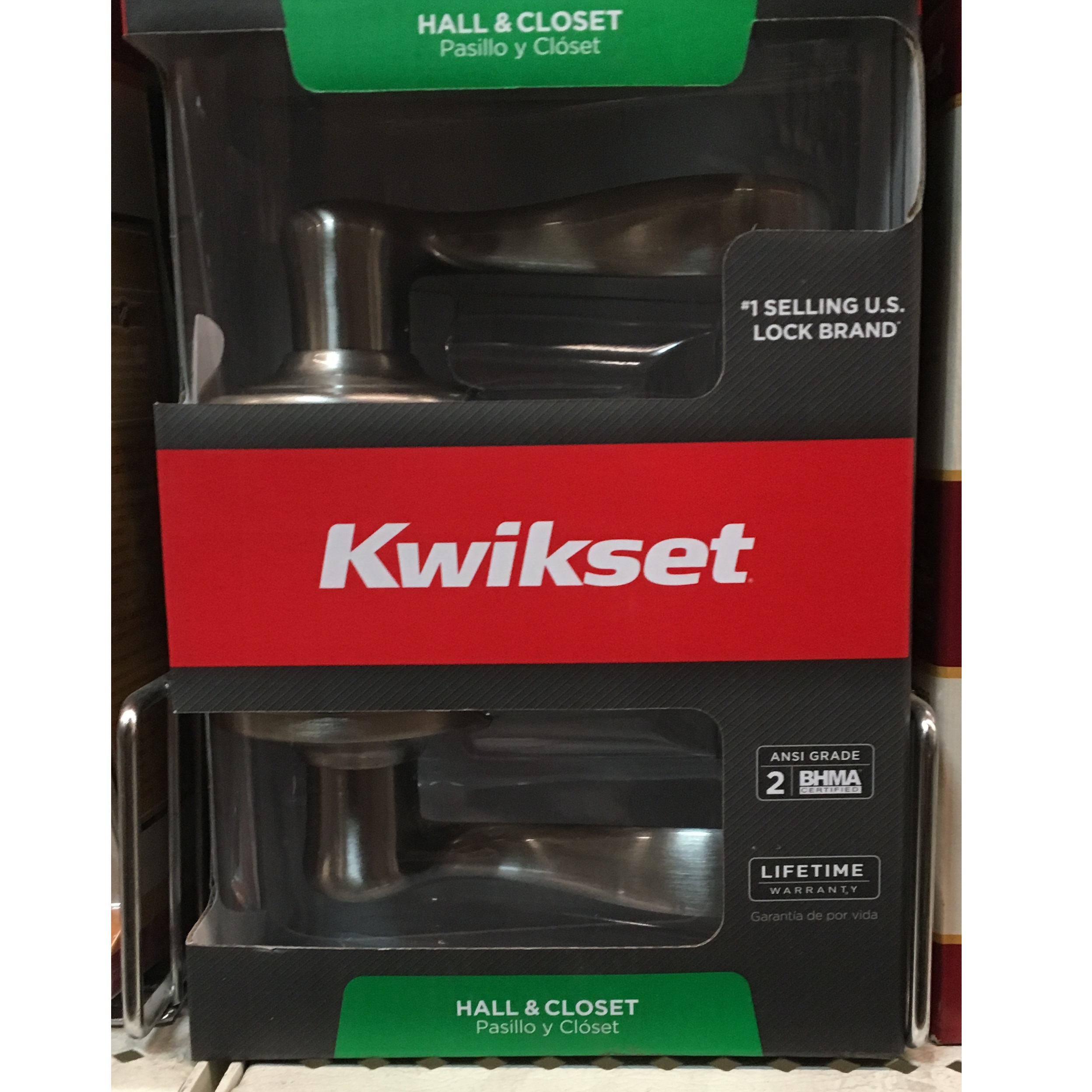

KWIKSET TUSTIN PASSAGE S.NICKEL

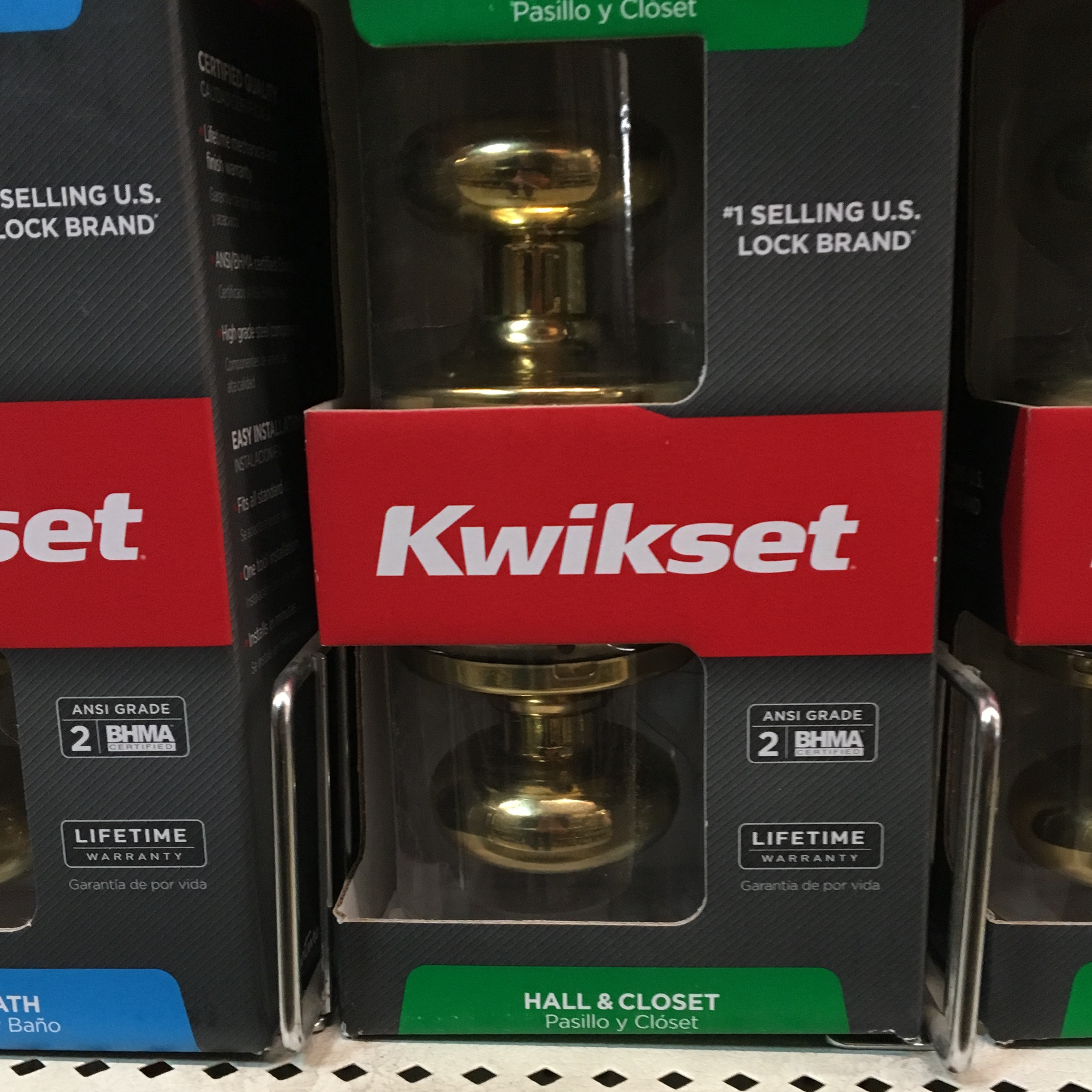

KWIKSET JUNO PASSAGE BRASS

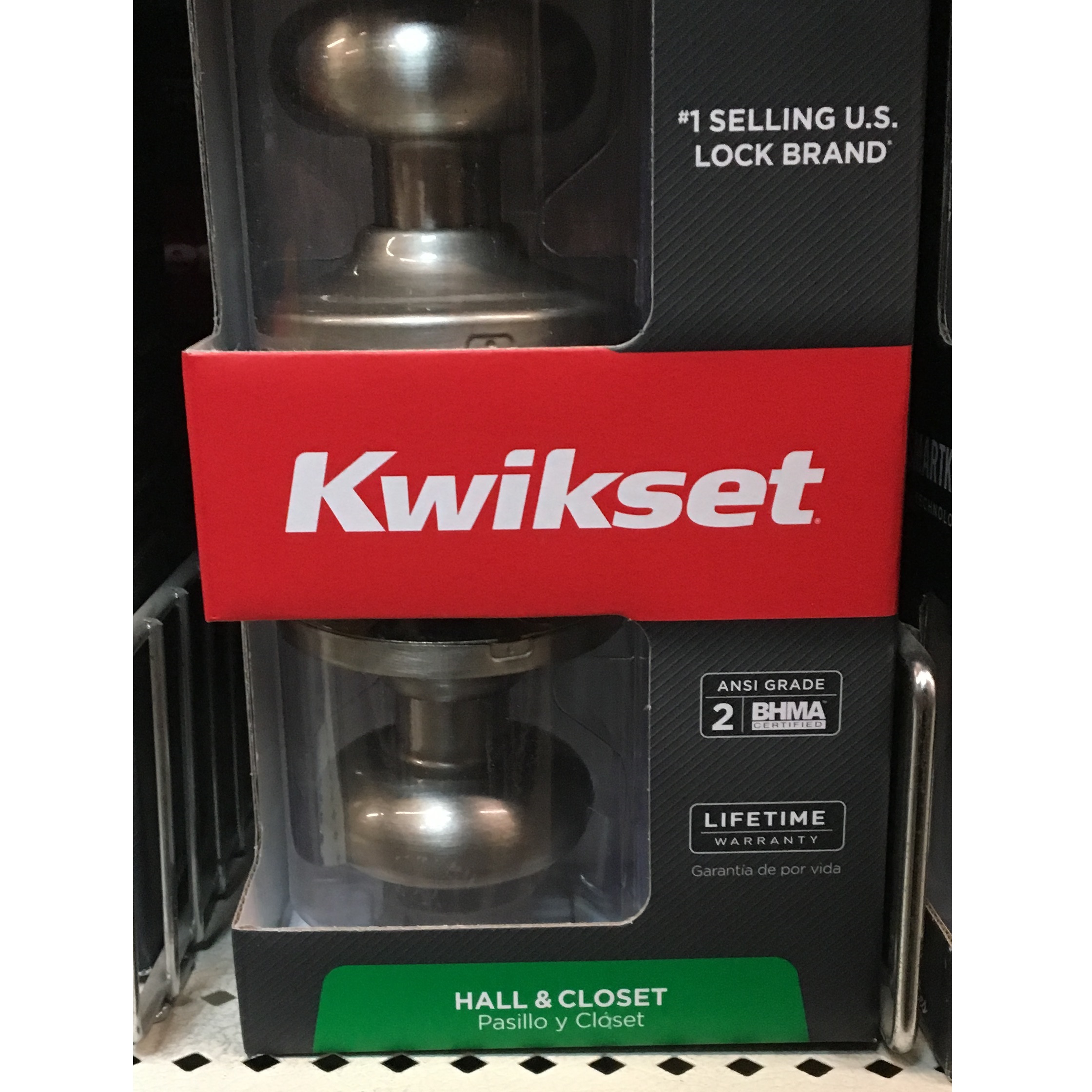

KWIKSET JUNO PASSAGE S.NICKEL

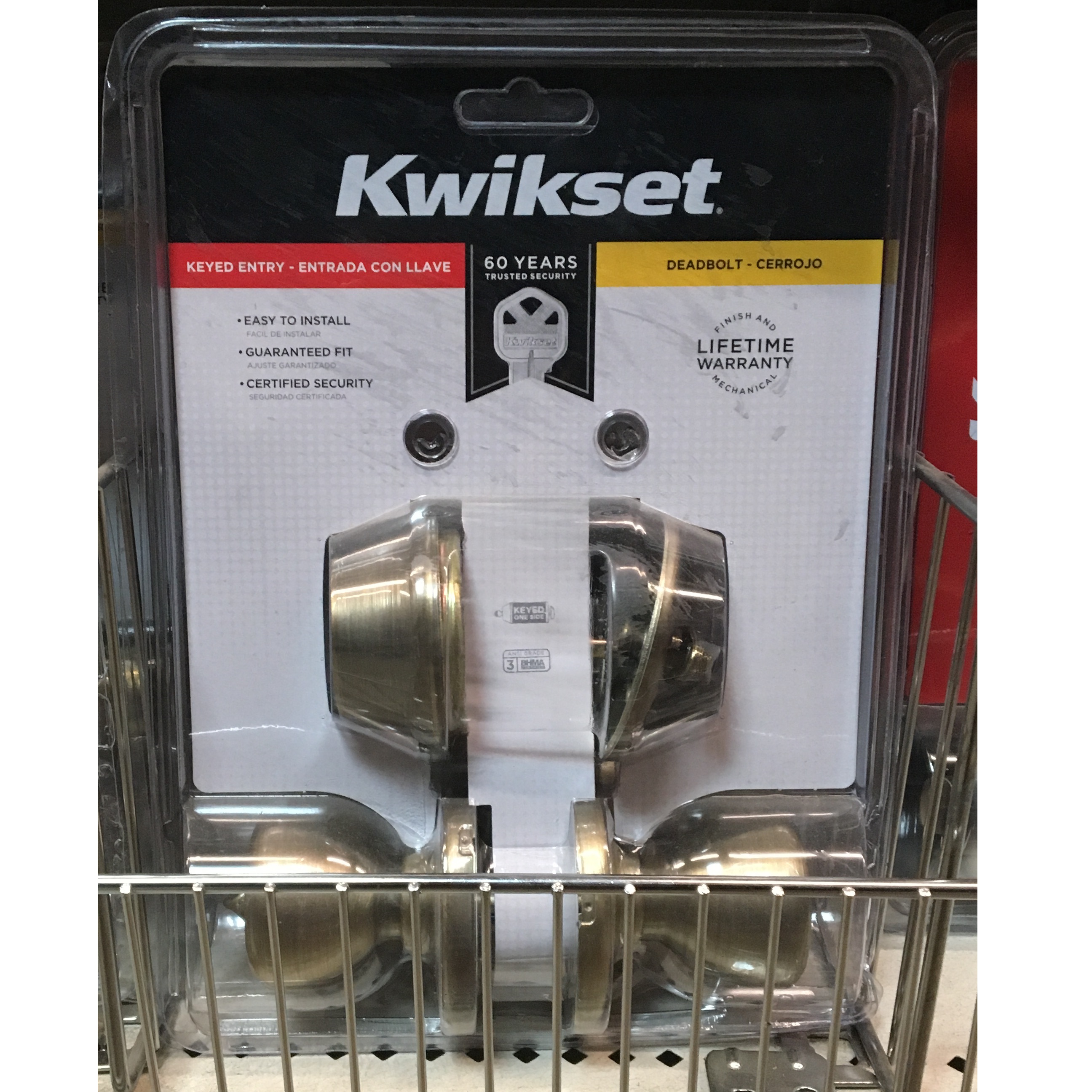

Includes one Tylo entry knob lockset and one No.660 deadbolt. Knobs locked or unlocked by key outside or turnbutton inside. Deadbolt operated by key outside and thumbturn inside. Security knobs feature full 1" solid core throwbolt, all metal mechanisms, anti-pry shield 5-pin system. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: 2-3/8" standard and adjustable 2-3/8" and 2-3/4" optional. DOOR THICKNESS: 1-3/8" to 1-3/4". CYLINDER: 5-pin. FACEPLATES: 1" x 2-1/4" round corner. STRIKES: 1" x 2-1/4" full lip. BOLT: knob 1/2" throw, deadbolt 1" throw. HANDING: Reversible for right or left hand doors. ANSI/BHMA: knob Grade 3, deadbolt Grade 3.

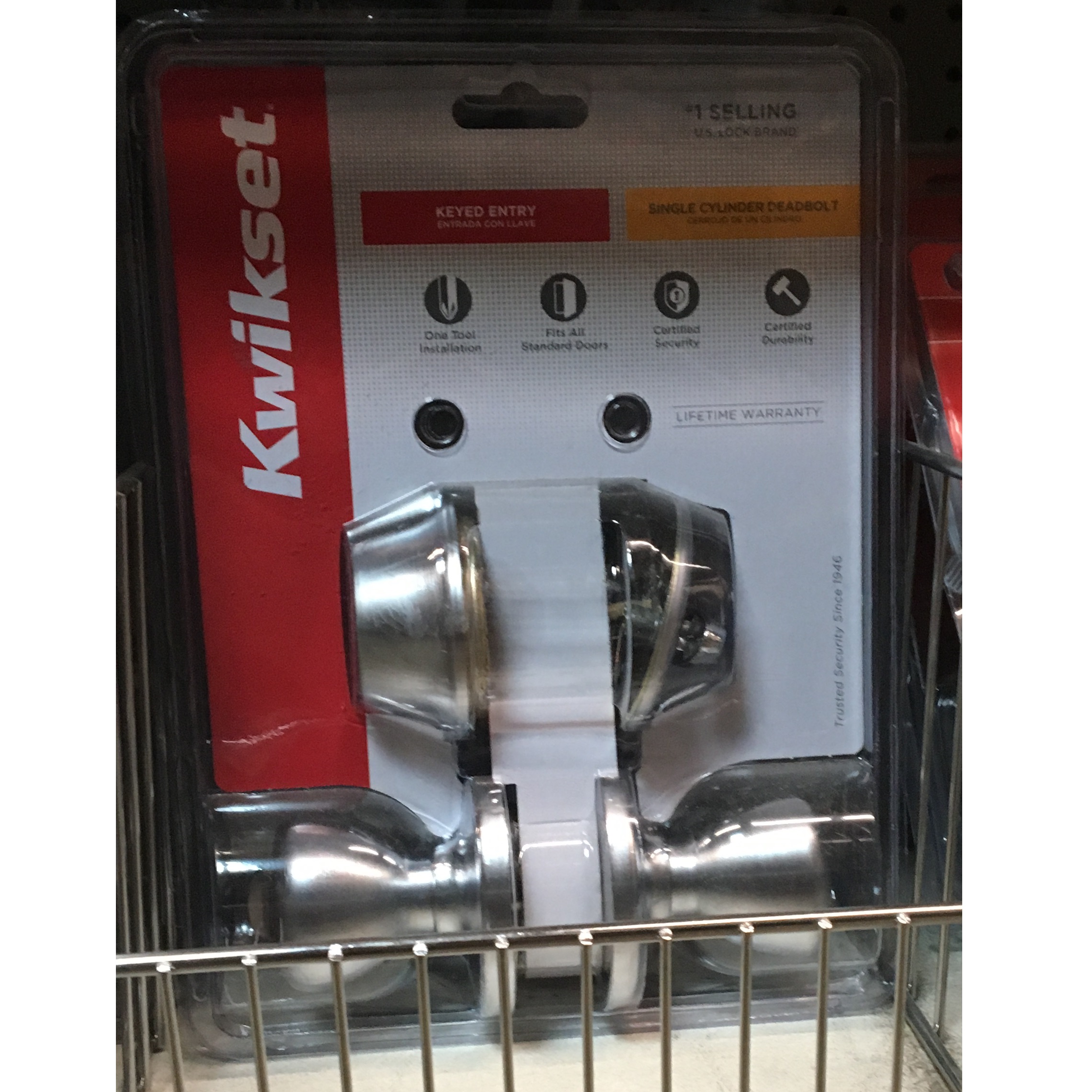

KWIK TYLO ENTRY & SGL D/B S.CHRM

ROUND FLUSH DOOR LOCK PASS SNCKL

ROUND FLUSH DOOR LOCK PRIV SNCKL

ROUND FLSH DOOR LOCK PASS A.BRNZ

ROUND FLSH DOOR LOCK PRIV O.BRNZ
